5,000 Lb. Capacity Extended QuickJack Lift PACKAGE / 110 Volt (60Hz) – With Wall Hanger Set & Pinch Weld Protector Blocks

Product Details

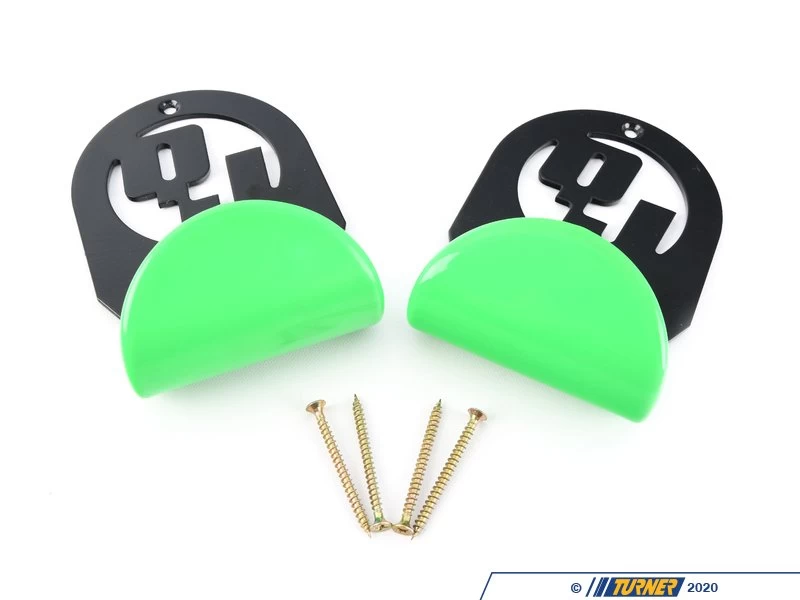

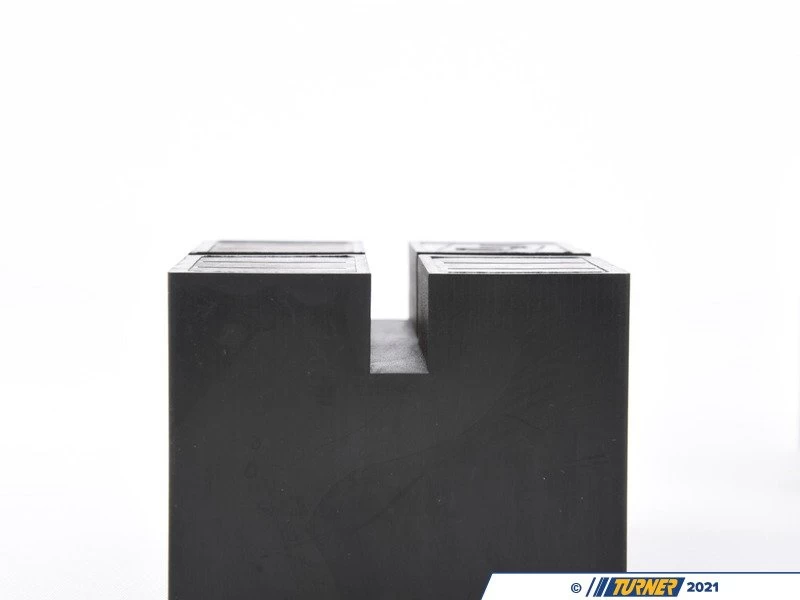

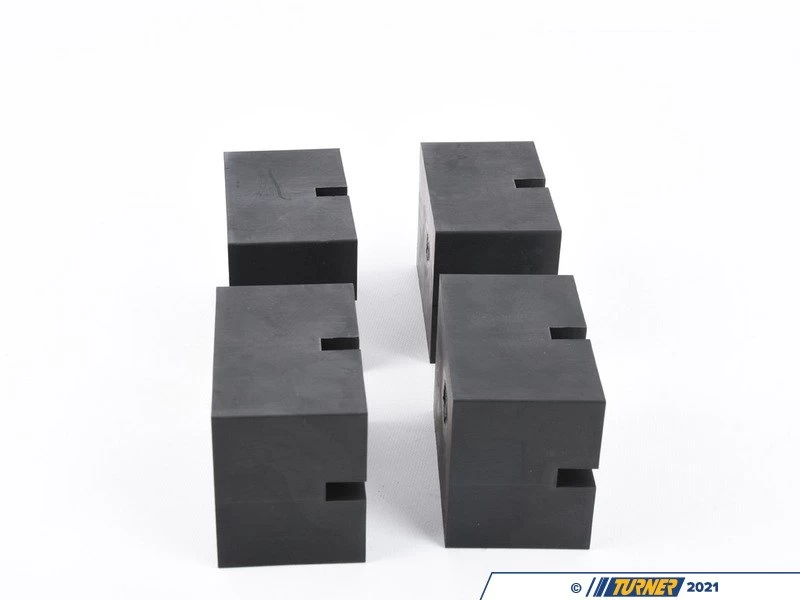

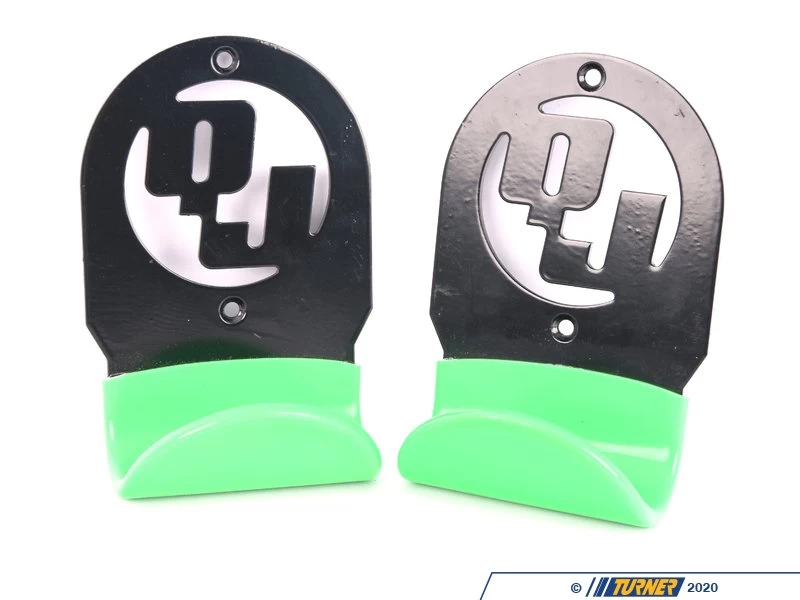

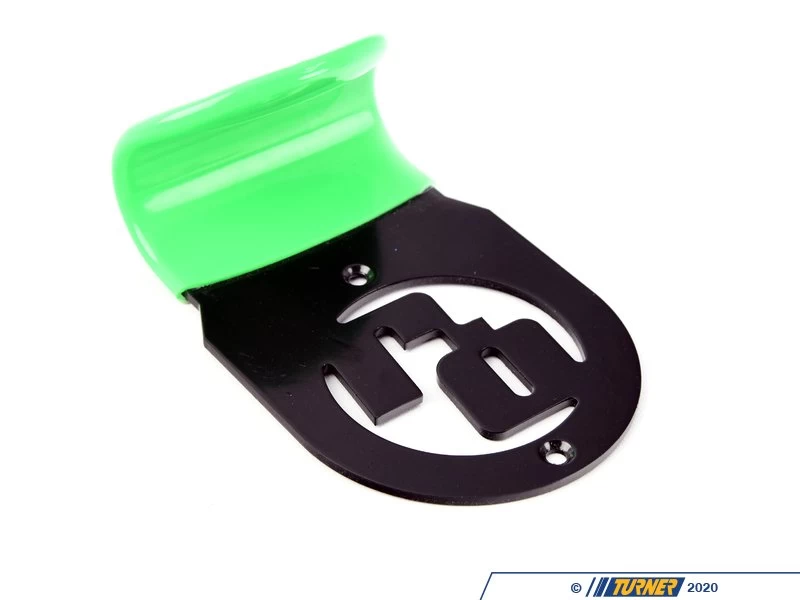

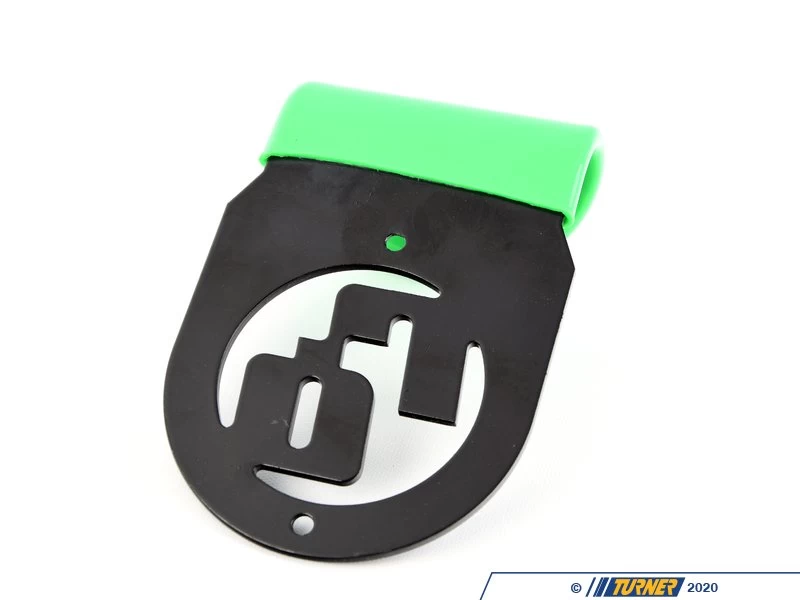

This QuickJack package deal includes the 5000TLX frame set, a set of QuickJack wall hangers (ES4355758), and a set of four pinch weld blocks (ES4355075).

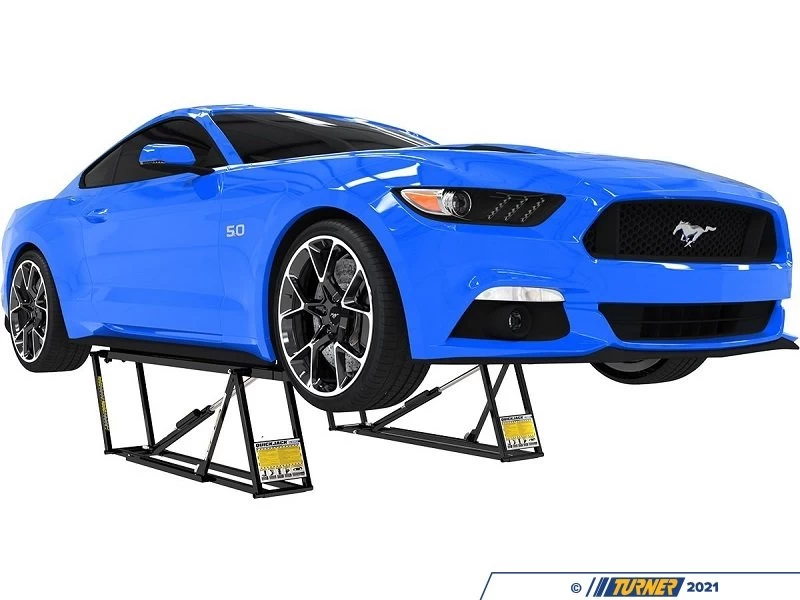

The 5000TLX has a maximum lifting capacity of 5,000-lb. It is the highly-anticipated sequel to the most popular automotive tool to ever hit the home garage or auto repair shop. With its extended lift point reach of 6 inches more than the 5000TL for longer wheelbases and the ability to lift an extra 3-inches, the 5000TLX portable car lift provides more room to tackle every repair and maintenance task on vehicles weighing up to 5,000-lbs. It also takes seconds to get up and running following initial one-time assembly. Just drop it on the ground and hook-up the power. As soon as the jack frames and rubber blocks are in place under your vehicle, it’ll be at a work-ready height in no time at all.

Working in a garage can become troublesome when stuck with only a jack and a few jack stands. Not only are jack-stands very unsteady at raised heights, it also requires the long, tedious process of raising each corner individually. Eliminate this issue with a vehicle lift that is unlike any other lifting system you have seen! QuickJack can raise your vehicle with the push of a button, raising your vehicle to the lift’s maximum height in just seconds. This allows you complete access to service your vehicle’s suspension, drivetrain, and under body, without any crossbeams to get in your way. Also, keeping safety paramount, QuickJack uses rugged, welded steel construction for strength and rock solid stability, and features auto-locking bars that lock the lift and vehicle at a set height until you are finished. This ensures the lift will never fail with you underneath, standing up to the toughest real-world garage and track conditions.



Features:

• EXTENDED-LENGTH car lift design
  • The 5000TLX portable car lift has been redesigned to accommodate vehicles with longer wheelbases. The overall frame length and lift point spread has been increased by 6″. As a result, the minimum lift point spread is now 6″ longer, as well. The new portable car lift design better accommodates longer wheelbases and/or extended lift point spreads.
• Automatic safety locks
  • Features dual-position automatic safety locks on each TL frame. As the frames rise, these locks glide securely into place at mid-rise and full-rise. Disengage with a simple flip of the lock bar and your car lift is ready for a smooth descent.
• Increased lifting height
  • QuickJack TL models are capable of lifting an extra 3-inches making it easier to perform vehicle maintenance tasks that are both routine and more involved. The extra room gives you more ability and versatility under the vehicle, while doing so in added comfort.
• One-handed operation
  • By holding the pendant control in one hand, your other hand is totally free. No cranking or bending during lifting.
• Accessories to increase versatility
  • Most QuickJack accessories were developed from customer suggestion and need. We offer many different lifting options and configurations to customize your QuickJack experience to fit your needs and specifications.

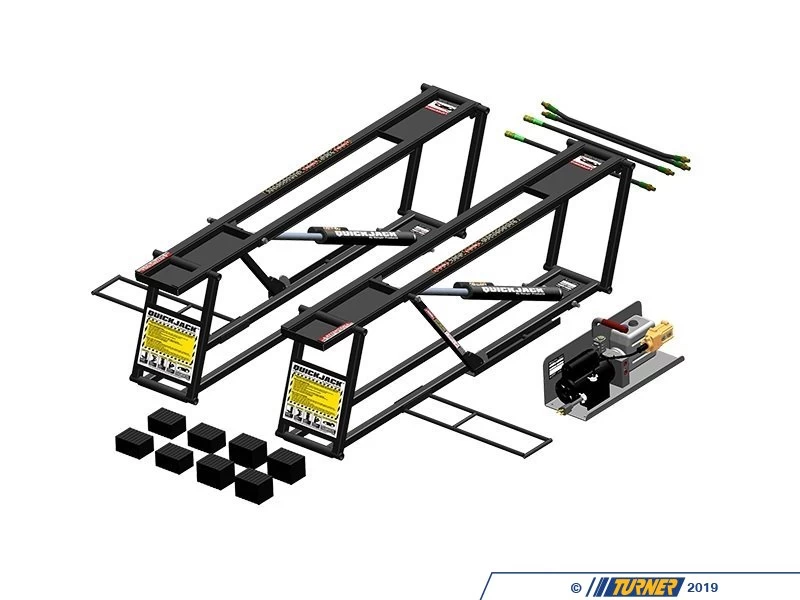

Includes:

• 5000TLX Left Frame Assembly
• 5000TLX Right Frame Assembly
• 1x Hydraulic power unit with control

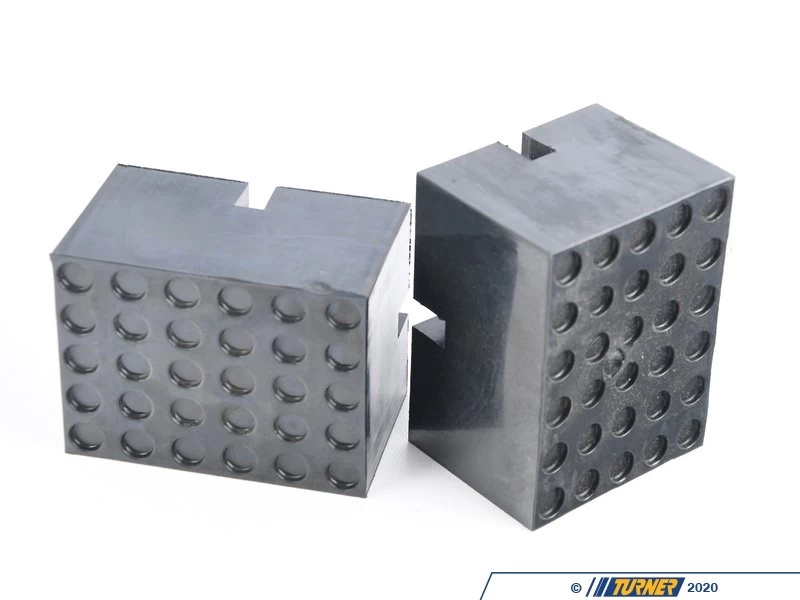

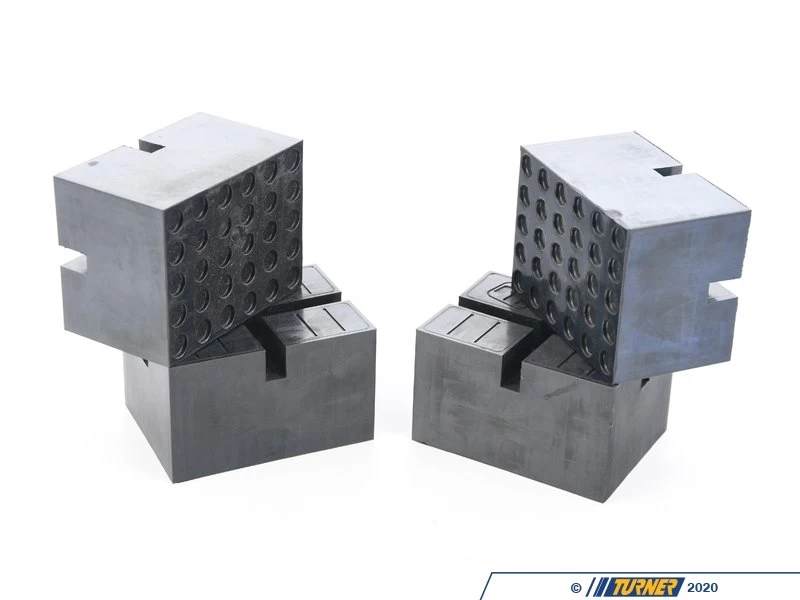

• 4x Medium rubber lift blocks (2″)
• 4x Tall rubber lift blocks (3″)
• 2x Short hydraulic hoses
• 2x Long hydraulic hoses
• 2x Frame-positioning handles
• Fittings and thread tape for setup
• Instruction manual



Not Included With Standard Frame Set:

• Up to 3 liters of Automatic Transmission Fluid
• Air source to inflate air cylinders up to 50 PSI
• Assembly tools



Specifications:

• Lifting capacity
  • 5,000 lbs. (2,268 kg)
• Lowered height
  • Frame only: 3″ (76 mm)
  • With 2″ block: 3.5″ (89 mm)
• Lifting height
  • With 2″ block: 21″ (521 mm)
  • With 3″ block: 22″ (546 mm)
  • Max. height: 24″ (616 mm)
  • With adapters: 24″ (597 mm)
  • With adapters + pin: 26.75″ (673 mm)
• Lift point spread
  • Maximum: 66″ (1,676 mm)
  • Minimum: 43″ (1,092 mm)
• Frame dimensions (ea.)
  • Width: 11″ (278 mm)
  • Length: 76″ (1,930 mm)
  • Height (lowered): 3″ (76 mm)
  • Weight: 81.5 lbs. (37 kg)
• Other specs
  • Time to full rise: 30 seconds
  • Power unit weight: 15 lbs. (7 kg)
  • Shipping dimensions (ea. frame):
    • 79.5″ (L) x 15.25″ (W) x 5″ (H)
    • (2,015 mm x 385 mm x 129 mm)
  • Shipping weight: 250 lbs. (113 kg)
