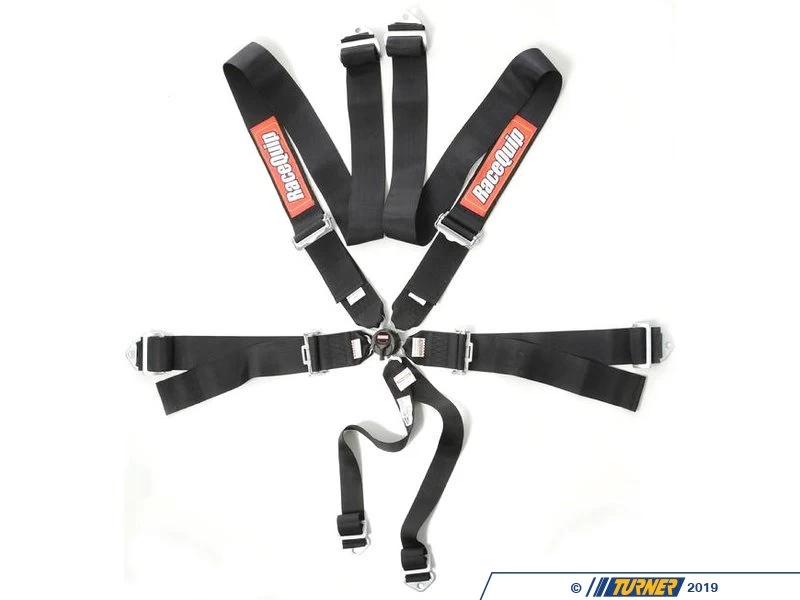

RaceQuip Pull Up HANS/HNR Camlock Racing Harness Sets – FIA 8853/98 Standard Approved

Product Details

Racing harnesses are required at any respectable track or strip, but they tend to run upwards of hundreds of dollars. RaceQuip designs and builds safety equipment for just this issue! Since 1975, RaceQuip has been building some of the highest quality racing safety gear on the market. Their high quality and low cost safety gear is the result of wanting to provide “The Best Value in Safety”, that keeps drivers safe without draining their wallet.

RaceQuip FIA Camlock Harness Sets feature an ultra-lightweight magnesium alloy cam buckle with an activation lever that points downward. The FIA cam buckle utilizes a wide engagement cone for easy snap-in. A 45˚(right or left) unlatch movement prevents accidental opening and precise spring pressure provides a positive feel. All RaceQuip FIA Approved belts are constructed using premium 3” Polyester webbing that is transverse mono filament woven to provide increased strength and smoother edges. Premium aluminum shoulder adjusters come standard on all RaceQuip FIA approved harness sets.

The RaceQuip 751 Series Camlock belt set offers many professional features yet affordable pricing for the grassroots racer. This Camlock belt set comes in a six (6) point configuration with a Pull-Up  lap belt design. The harness sets pass the stringent FIA 8853/98 standard.

They start with a super-lightweight 165 gram magnesium alloy cam buckle. The buckle features an engagement cone which allows the belts to snap into the cam mechanism at angles of 21˚ left or right and 11˚ up and down for ease of engagement. Precise internal spring pressure allows a positive feel on the 45˚ (right or left) unlatch movement that reduces the chance of accidental opening.

Next, the forged SAE 4130 steel buckle hardware is sewn onto the premium 3” polyester webbing, called “transverse mono filament woven”, which means that there are mono filament fibers inter-woven into the straps in a pattern that transverses the standard weave. This design accomplishes two tasks – added strength and smoother edges on the belts. The harness sets also feature premium, lightweight, non-slip aluminum shoulder adjusters with easy lift grips. The lap belt adjusters utilize an anti-slip tensioner device as well. Heavy-duty forged steel SAE 1050 3″ slide bars and 3″ bolt on ends come already installed, but they can be easily removed if you prefer to mount your belts by wrapping them around a rollbar or you can change them out to snap-hook ends. Belt adjustment lengths are 20” to 68” for shoulders and 20” to 68” for the lap belt.

Features and Specifications:

• Lightweight 165 gram Magnesium Alloy Cam Buckle
• Exceeds Stringent FIA 8853/98 Standard (FIA Tags Affixed)
• 6 Point Design – Dual 2″ Crotch Strap
• NOT D.O.T. / FMVSS Certified for On Highway Use
• Pull Up Lap Belt Adjusters
• Wide Engagement Cone For Easy Snap In
• Precise Spring Pressure for a Positive Feel
• 45° (right or left) Unlatch Movement Mitigates Accidental Opening
• Heavy-Duty Drop-Forged Steel Hardware Ends Installed (no bolts)
• Wrap Around or Bolt-in Mounting
• Premium 3” Polyester Webbing
• Transverse Mono Filament Woven for Increased Strength and Smoother Edges
• Premium Aluminum Shoulder Adjusters
• Shoulder Belt Adjustment Length is 20″ to 68″
• Lap Belt is Adjustable from 20″ to 68″
• Available in Black or Red
