TiAL Q Blow Off Valve – Black

Product Details

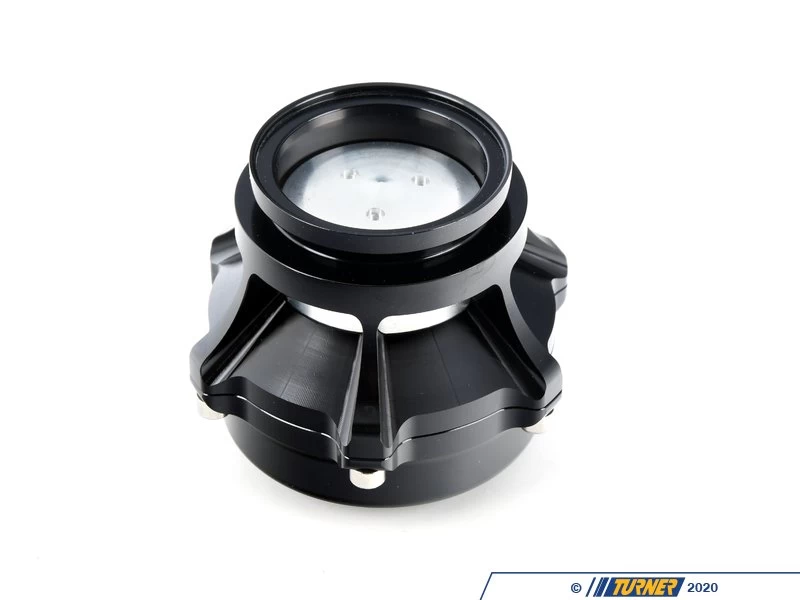

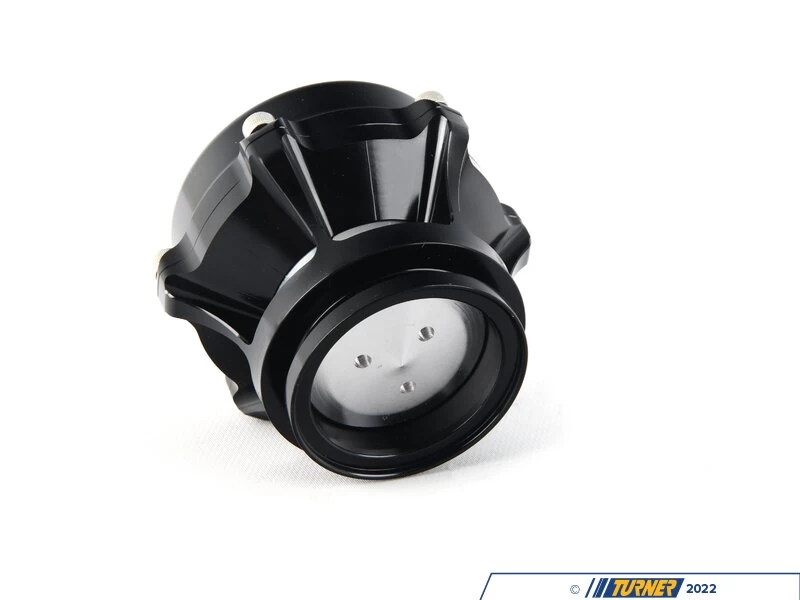

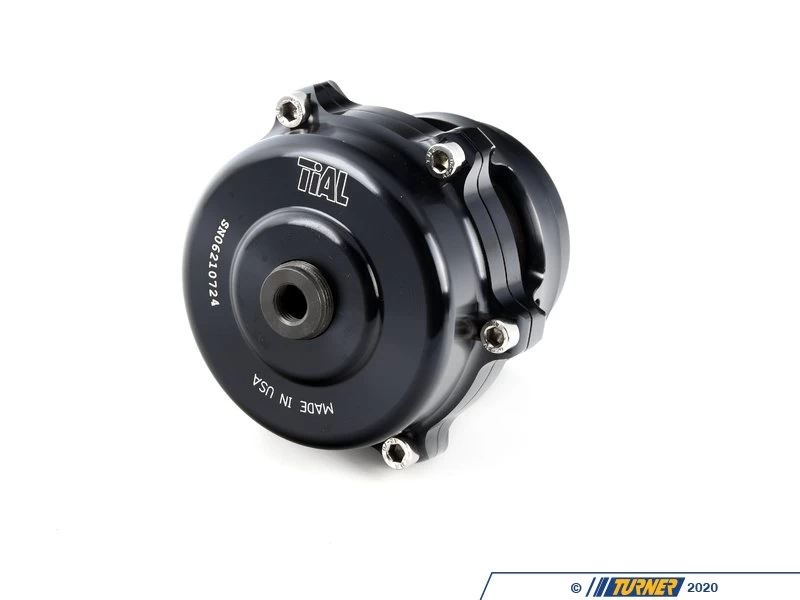

The first revision of TiAL’s original blow-off valve, the Q Series flows 60% more than its predecessor and bolts to any standard TiAL flange without welding. An aluminum weld base mounting flange cut for 2-1/2” pipe and aluminum V-band mounting clamp with stainless steel hardware create a durable corrosion-free appearance. A banjo-type aluminum air fitting and bolt with oversized 10mm hose barb allow quick actuator response.

Features & Specifications:

• For use on turbo-charged and super-charged applications (Paxton, Vortec, etc.) The body and all internal components are CNC-machined from 6061 aluminum alloy. It features a large 1.98” (50.5mm) valve.

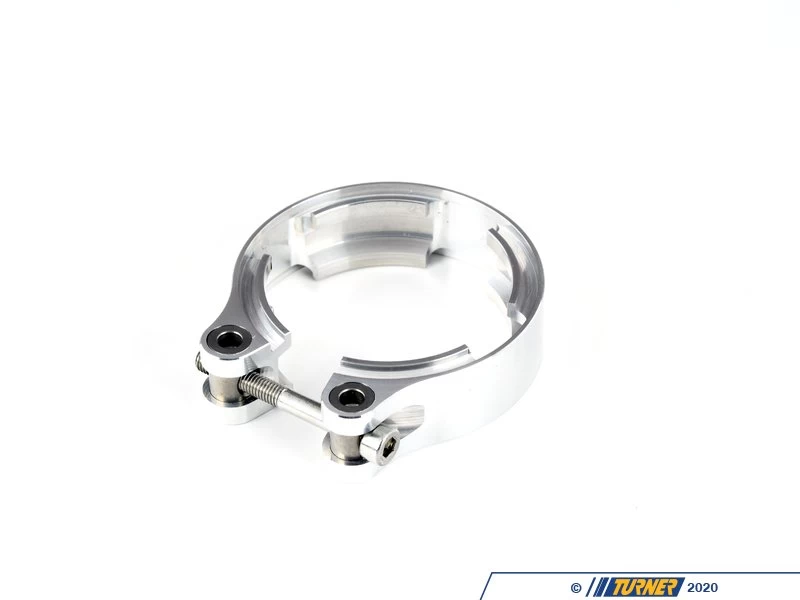

• V-Band design aluminum mounting clamp gives a very clean and unique appearance. The clamp uses Stainless Steel hardware for a long-lasting, corrosion-free appearance.
• The valve seal utilizes a Viton O-ring that is clamped in place to prevent the possibility of sticking to the seat and pulling out. The valve stem and guide are PTFE-lubricated, hard anodize-coated for wear resistance.

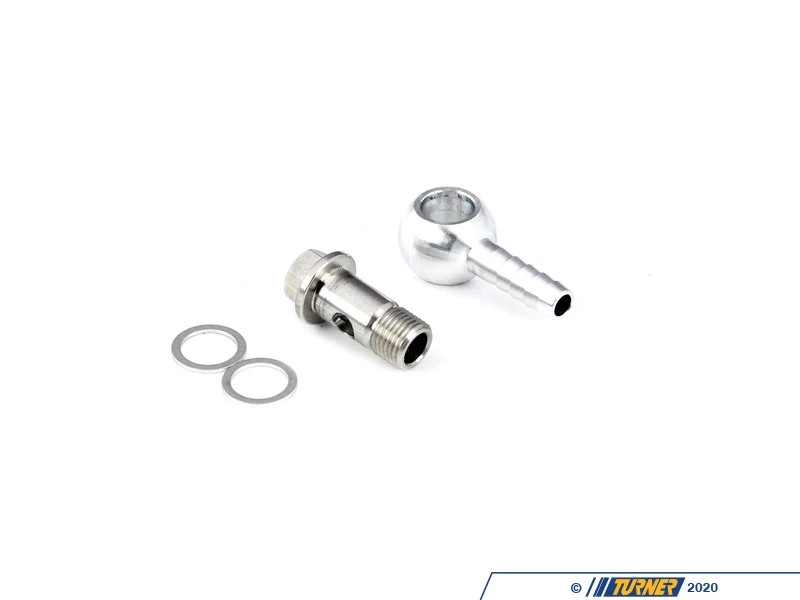

• Includes a machined aluminum banjo-type air fitting and bolt, with an oversized 10mm hose barb for quick actuator response. The actuator has a high temp silicone Nomex-reinforced diaphragm for long life.

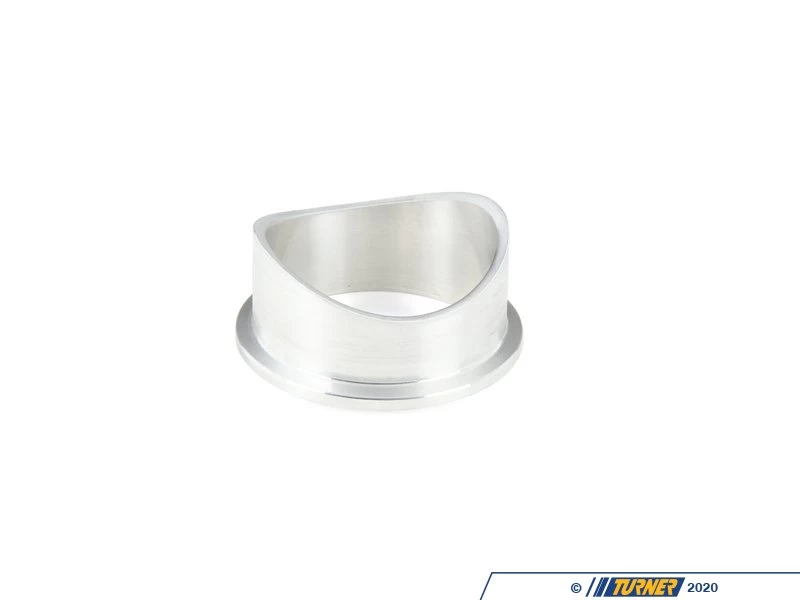

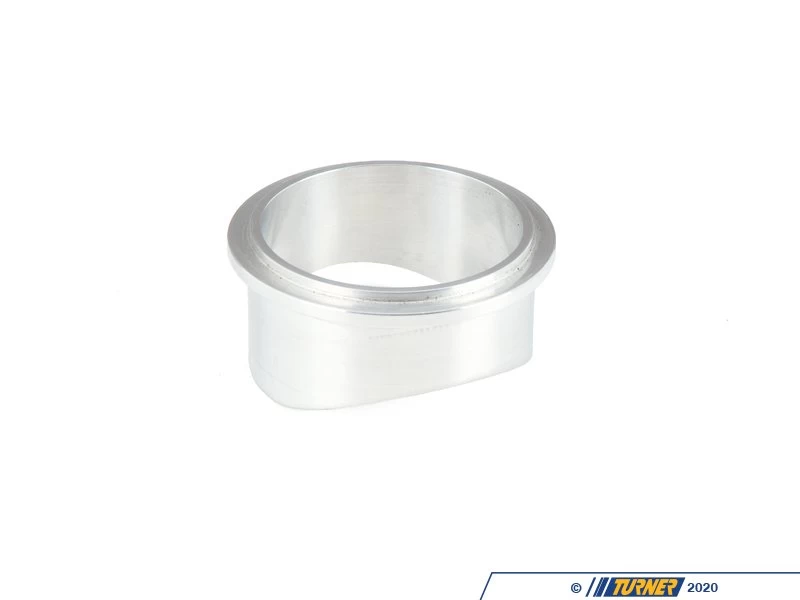

• An aluminum weld base mounting flange is furnished with each unit
• Through countless hours of R&D, Tial was able to make the same size valve flow a staggering 60% more than the original design – that means 60% more air is blown off per cycle! This is the highest flowing BOV on the market
• A single Q BOV can support up to 1,800hp

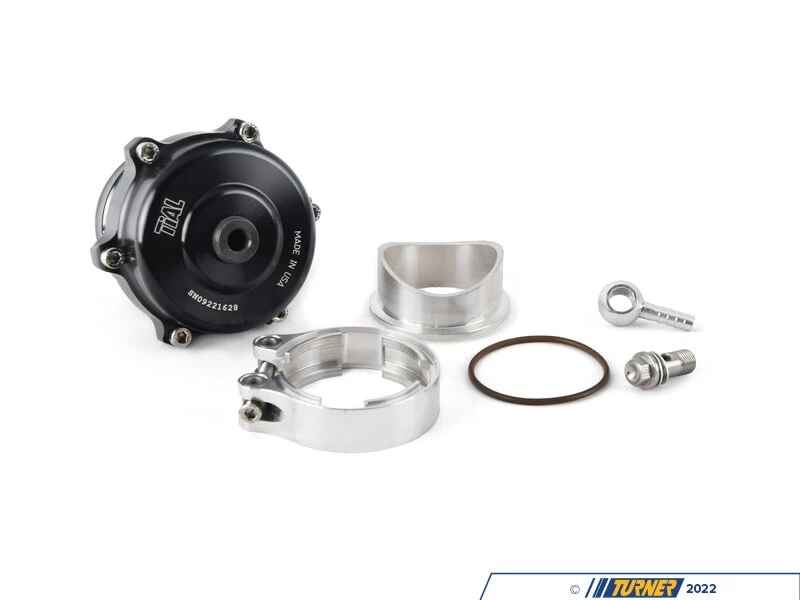

Included with Every Tial Q Series Blow-Off Valve:

• Q Series BOV Assembly
• TiAL V-band Clamp
• V-band Weld Flange
• TiAL Air Fitting
• High-Pressure O-ring

Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.
