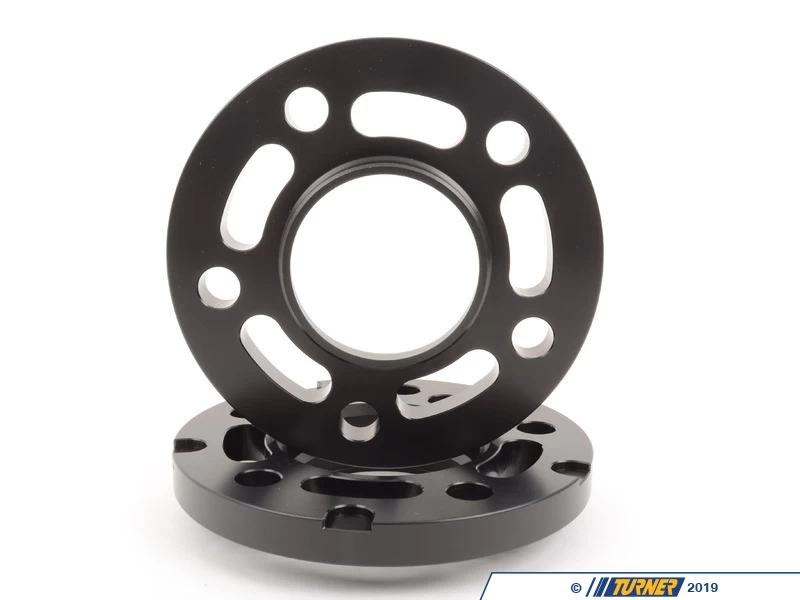

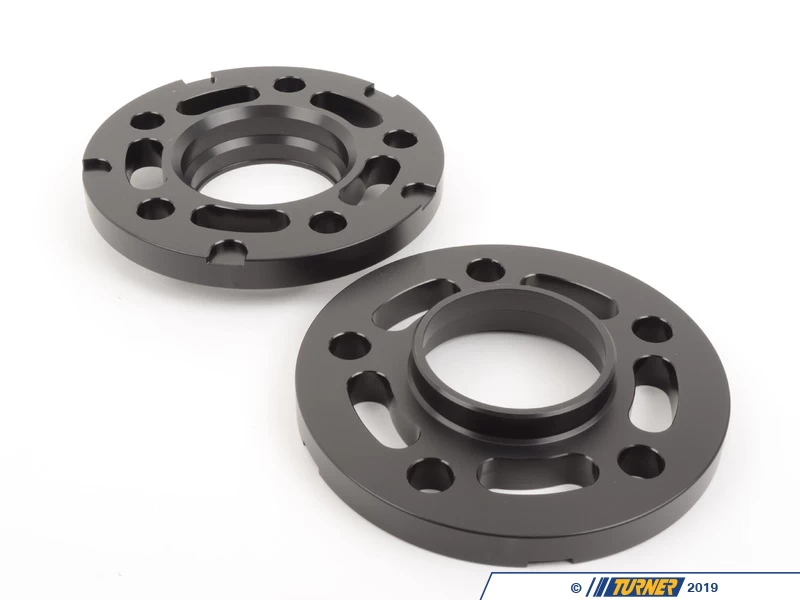

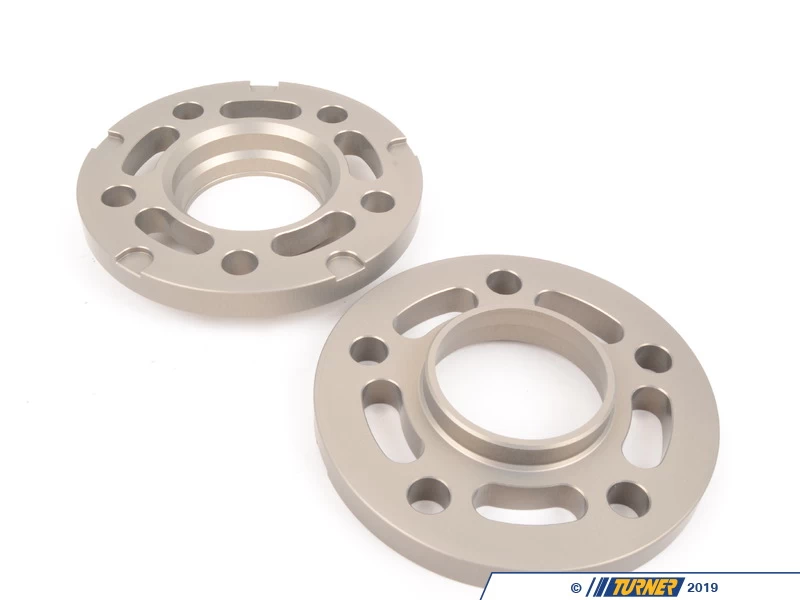

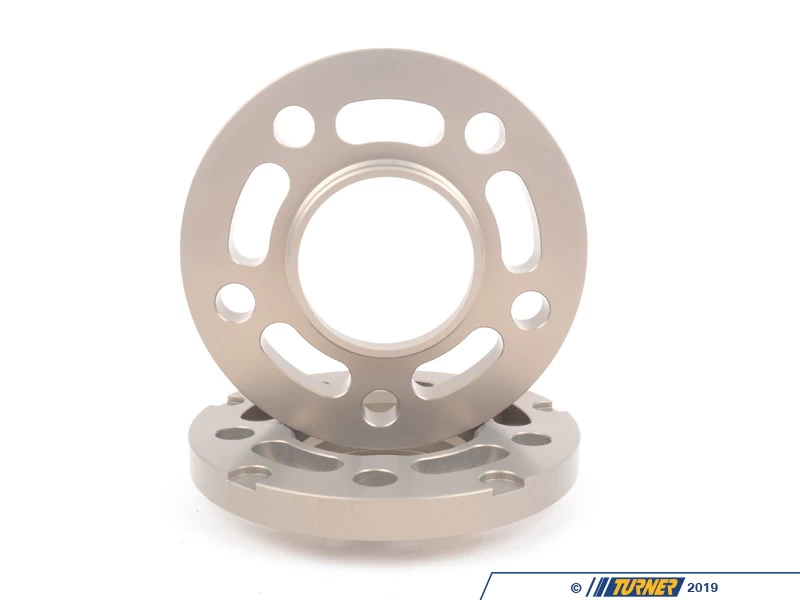

Turner BMW 15mm Big Pad Wheel Spacers (Pair) – E70/E71, F-Chassis

Product Details

15MM (.59 inch) Big Pad Wheel Spacer for BMW F22 F23 F87 F30 F31 F34 F32 F33 F36 F80 F82 F83 F10 F07 F12 F13 F06 F01 F02 F25 (see fitment notes below)

Wheel spacers are the ideal solution to resolve a number of fitment and aesthetic problems —

• Correct wheel offset issues
• Achieve a flush fitment instead of the “tucked under” look
• Clearance the wheel from contact with other components (suspension, brakes, etc).
• Improve handling and stability by increasing track width

A spacer fits between the wheel and the hub assembly and pushes the wheel out by the thickness of the spacer. Our wheel spacers are compatible with almost any type of BMW wheel and are a direct fit to the wheel hub (see below for any fitment notes). These are our Big Pad wheel spacers that are a larger diameter so they match the bigger mounting surface of newer stock BMW wheels (click here for more info on Big Pad spacers). Longer wheel bolts or wheel studs are required.

This latest generation of the Turner Motorsport Wheel Spacers represents a total redesign of the wheel spacer concept – a ground-up, clean-sheet design based on our years of BMW service and motorsports. We took everything we have learned from our service technicians, customers, and race team crew and built the spacer to beat all spacers. We’ve been in the BMW wheel spacer business probably longer than anybody and when it came time to make our own spacers, a basic spacer design just wouldn’t do. We had to make a spacer that is lightweight (for lower unsprung mass), has a tough and durable coating to last through our New England winters, is easily removed (your mechanic will thank you), and is precisely engineered and manufactured for a proper fit on the hub and in the wheel. You won’t find a better-engineered wheel spacer on the market!

Turner Wheel Spacer Features —

• hub-centric design, 1-piece spacer
• precise tolerance fitment thanks to CAD process and CNC mill machine
• large wheel pad surface area – 156mm vs standard 150mm
• aerospace grade aluminum  lightweight but very strong with high resistance to corrosion
• additional military-spec hardcoat for further corrosion resistance
• innovative Quick Release pockets for easy removal (better than a chamfered back edge)
• laser-engraved size and part number for easy identification
• stealthy anthracite or black color
• extended bolt sets in factory-matching black or bright silver finish available (wheel stud kits also available)
• Turner Motorsport track and street tested!
• Made in the USA

Extended Wheel Bolts
Longer wheel bolts or wheel studs are required for all BMW wheel spacers. Spacers cannot be used with stock bolts. Our extended lug bolts are very high quality and high-grade steel lug bolt (grade 10.9). We offer two finishes to get you just the right look with your wheels – black zinc to maintain a factory BMW appearance or a bright zinc nickel finish to go with polished wheels. Zinc finishes are designed to withstand 700 hours of salt spray testing.

Wheel Spacer Tech & FAQ:
How To Measure for Spacers
Wheel Spacer Encyclopedia – everything you wanted to know

Spacer Specs:

• bolt pattern: 5 x 120
• center bore: 72.6mm
• hubcentric: yes
• wheel pad size: large

Important Note: It is critical that you measure the depth of your stock hub lip. The depth of the lip must not be greater than the thickness of the spacer. If the hub is deeper than the spacer, the spacer will not seat against the brake rotor and it could lead to spacer and/or wheel failure. Since spacers cannot be returned once opened we strongly advise measuring your lip first. Contact us if you have any questions.

Year & Model Applications

Front or Rear Applications:
2014+ F22 F23 BMW 228i 228iX M235i M235iX
2016+ F87 BMW M2
2012+ F30 BMW 320i 320iX 328i 328iX 335i 335iX – Sedan
2012+ F31 BMW 328i 328iX – Wagon
2014+ F34 BMW 328i 328iX 335iX – Gran Turismo
2014+ F32 BMW 428i 428iX 435i 435iX – Coupe
2014+ F33 BMW 428i 428iX 435i 435iX – Convertible
2014+ F36 BMW 428i 428iX 435i 435iX – Gran Coupe
2015+ F80 BMW M3
2015+ F82 F83 BMW M4
2004-2010 E60 BMW 525i 528i 530i 535i 545i 550i M5
2011+ F10 BMW 528i 528i xDrive 535i 535i xDrive 535d 535d xDrive 550i 550i xDrive M5
2010+ F07 BMw 535i GT, 535i xDrive GT, 550i GT, 550i xDrive GT
2012+ F12 BMW 640i 640i xDrive 650i 650i xDrive M6
2013+ F06 BMW 640i Gran Coupe 640i xDrive Gran Coupe 650i Gran Coupe 650i xDrive Gran Coupe M6 Gran Coupe
2009+ F01 BMW 740i 740li 750i 750li 750i xDrive 750li xDrive 760li
2011+ F25 BMW X3 xDrive28i X3 xDrive35i

Rear Applications Only:
2007-2013 E70 BMW X5, X5M
2007-2014 E71 BMW X6 xDrive35i X6 xDrive50i X6M
