Turner Motorsport Open Carbon Intake – F87 M2, F22 M235i/xDrive, F30 335i/xDrive, F32 435i/xDrive (N55)

Product Details

*When installing the carbon fiber intake tubes, make sure not to overtighten any clamps to prevent cracking of the tubes*

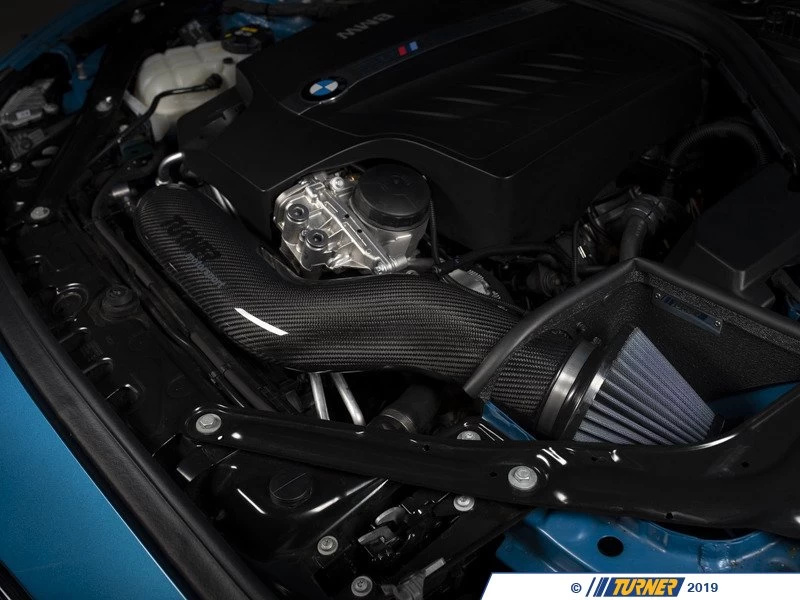

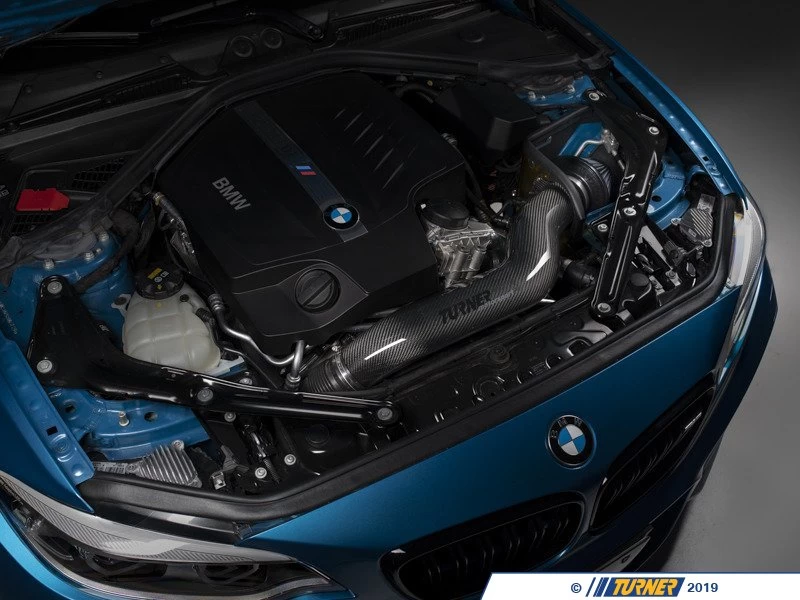

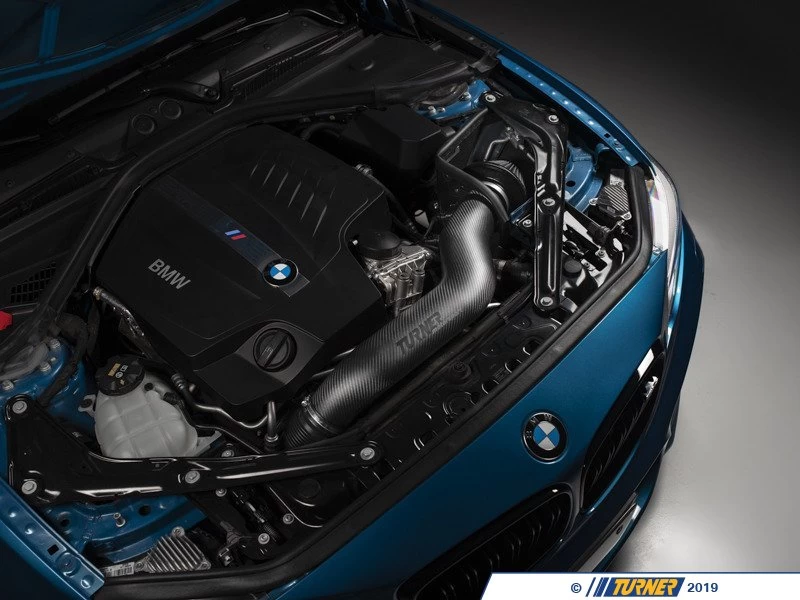

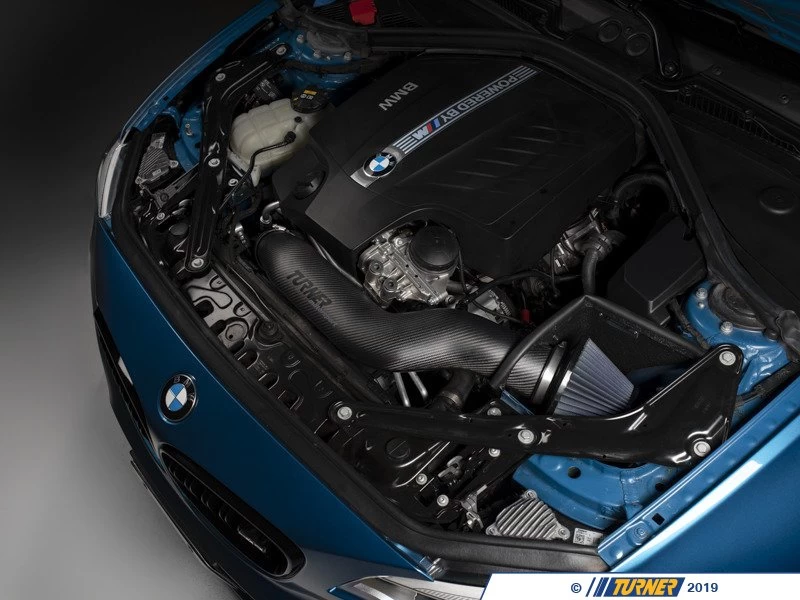

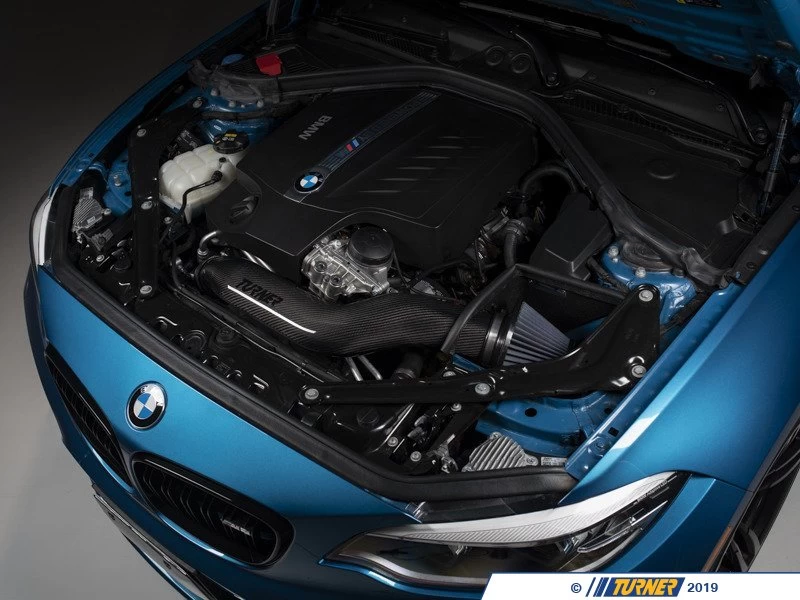

We are proud to present you with our long-awaited Turner Motorsport Carbon Fiber N55 Intakes. Like all of our Turner Motorsport products, our N55 intake was CAD Designed in-house to give you the best performing, most beautiful intake we could possibly imagine for your N55 powered BMW. The best part? Our design seamlessly integrates with OEM ducting and stock mounting locations to give you a simple install and an OEM+ fit and finish. We believe this is the way the N55 engine bays should have come from the factory. It’s time to ditch all that plastic.

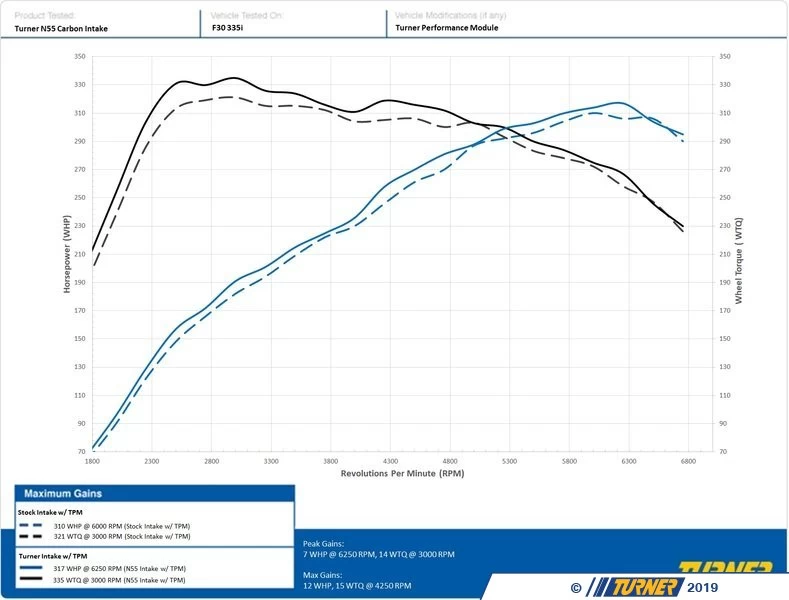

Our higher flow filter and intake design gave our F30 335i an additional 7 WHP and 14 ft-lbs of torque over stock when we tested on our dyno. Our less restrictive intake design reduced post filter pressure by 0.2 psi over stock, allowing for gains across the entire RPM range – this reduced pressure drop also results in less stress on your N55’s turbo.

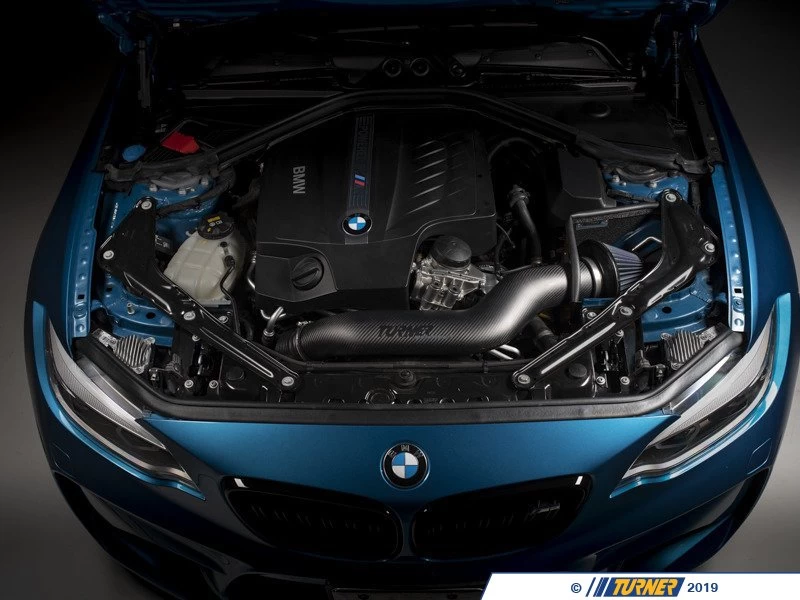

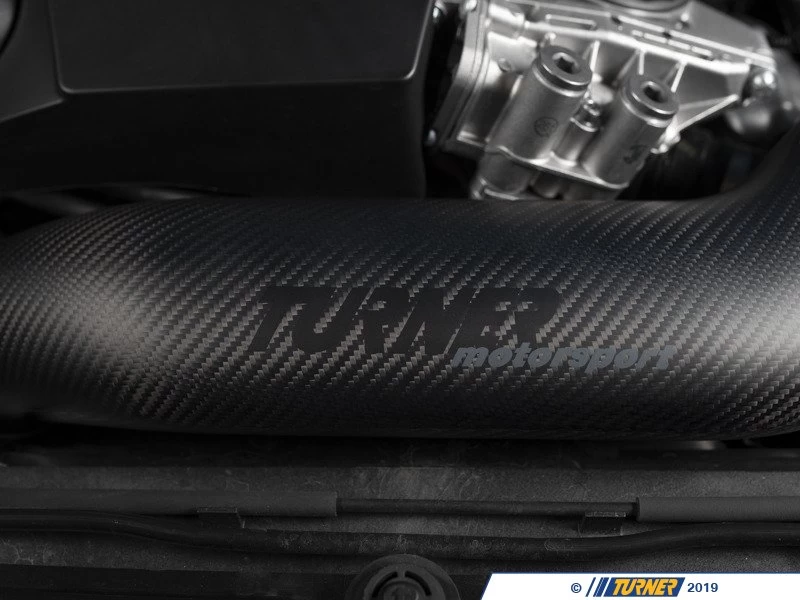

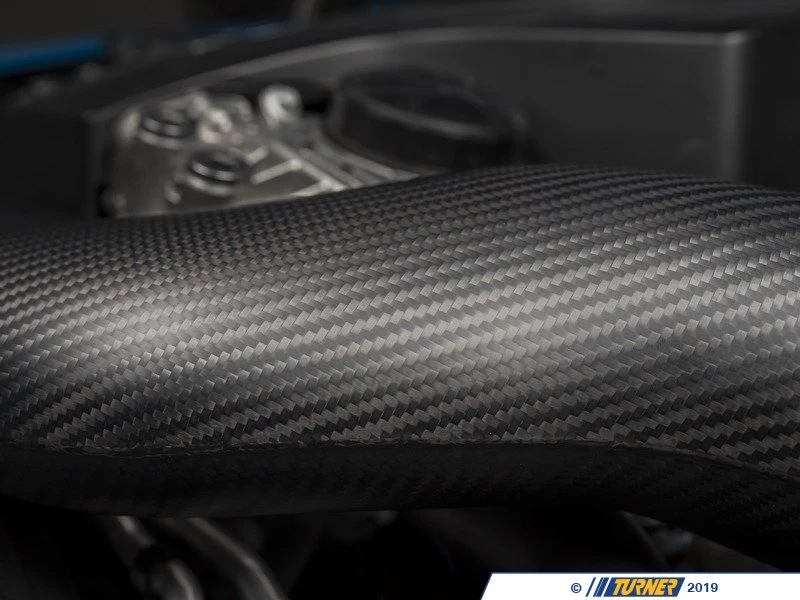

We offer our N55 carbon intake in either gloss or matte finish, so you can choose what best suits your engine bay. Select either gloss or matte finish below, and then please select whether or not you are purchasing an intake for a manual transmission vehicle. If your vehicle has a manual transmission, it will require BMW Part # 13907515387.

If you are looking for our Turner Motorsport Enclosed Carbon Intake, see T#568148 Note that we only offer Open intakes for F87 M2.

Download PDF Installation Instructions

Key Features & Benefits:

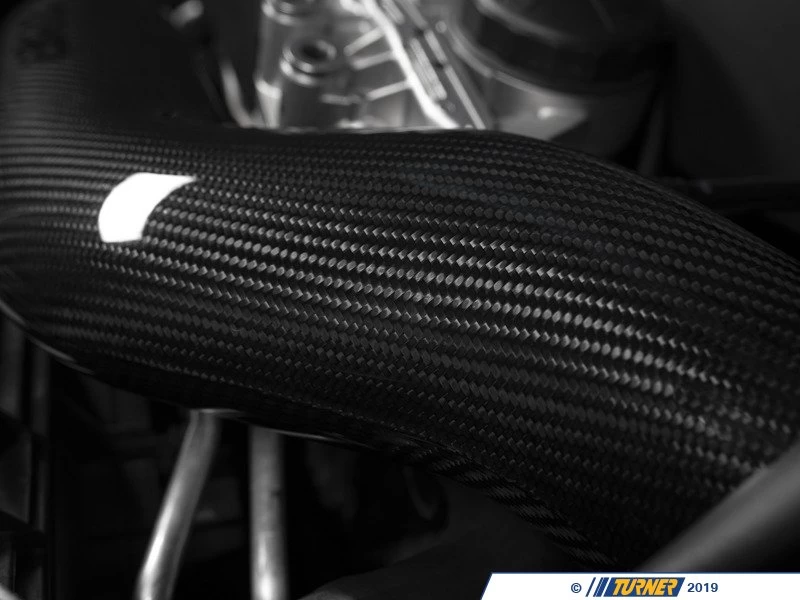

• 2×2 twill weave carbon fiber, clear coated for UV protection
• Wrinkle Black Powder Coated heat shield
• Ovaled Intake tube for OEM quality fitment
• High flow cleanable Turner Motorsport air filter
• ​Peak gains of +7 WHP / +14 lb-ft of torque (with max gains of +12 WHP / +15 WTQ)

Special care instructions:

• If clear coat gets scratched, reseal affected area with clear coat touch up
• ​To retain UV resistance and protect finish, wax with high quality carnuba wax

Our N55 Carbon Intake fits the following BMWs:

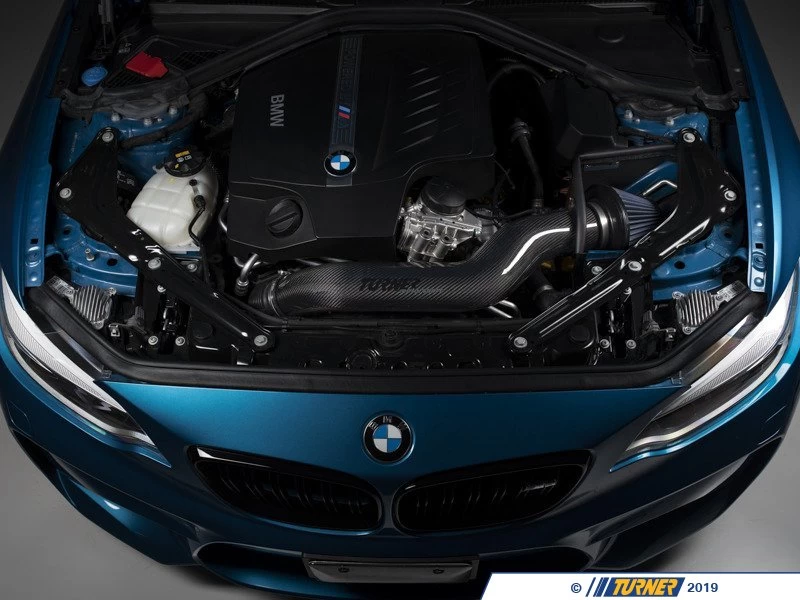

2016+ F87 M2 *WILL NOT FIT M2 CS (N55 only)
2014 – 2016 F22 M235i, M235i xDrive
2012 – 2015 F30 335i, 335i xDrive
2012 – 2015 F32 435i, 435i xDrive

Want more in-depth details? We’ve got you covered below:

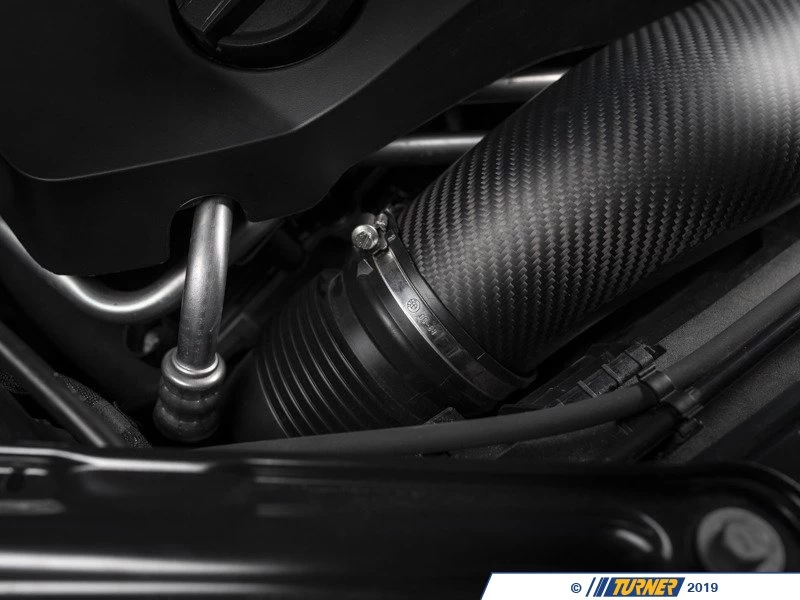

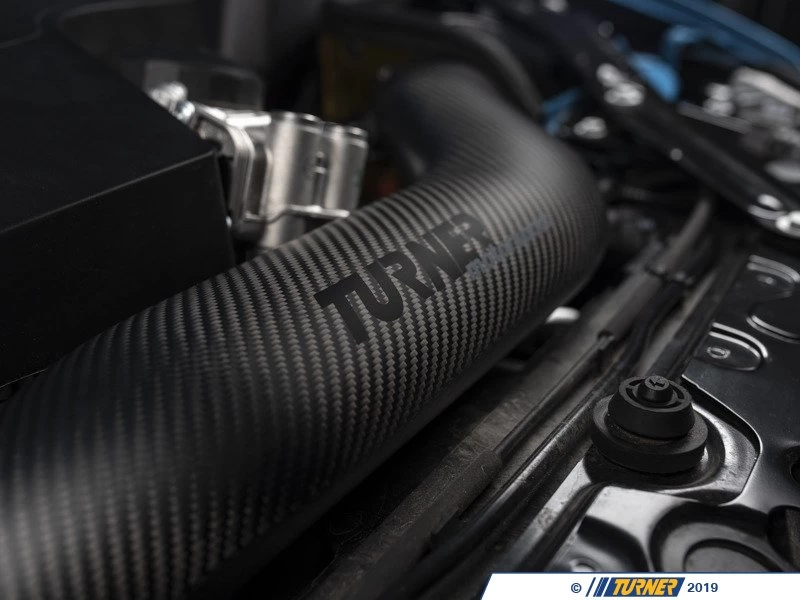

Carbon Fiber Intake Tube:

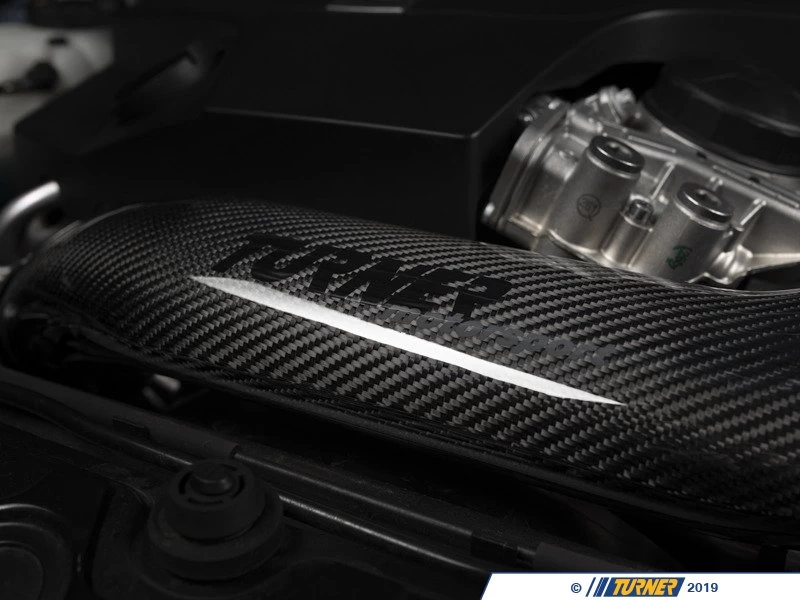

• 2×2 twill weave carbon fiber, protected by a clear coat for UV protection
• Ovaled intake tube design allowing for ideal cross-sectional area and optimal flow
• MAF scaling matches factory intake

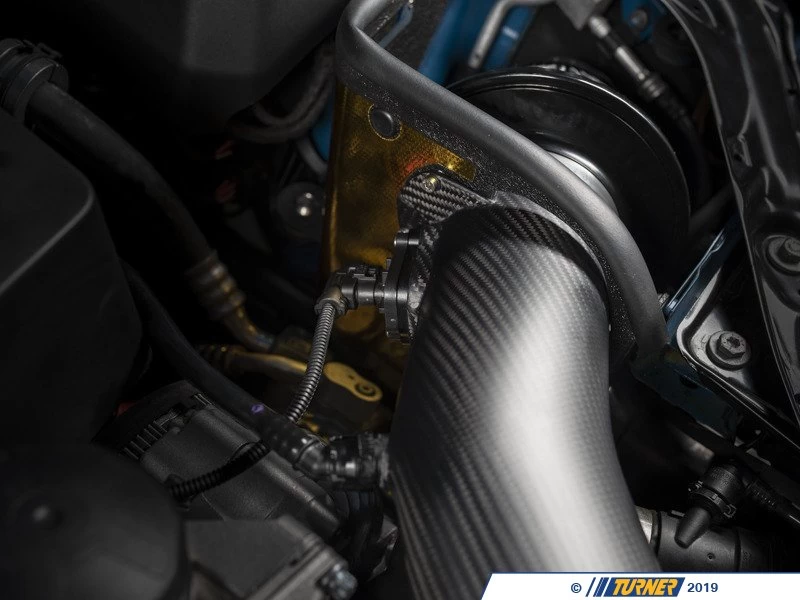

• MAF sensor flange machined from 6061-T6, black anodized and bonded to the intake tube directly in the center of the tube for accurate temp/airflow reading
• Vacuum line port machined from 6061-T6, black andozed and bonded to intake tube
• Integrated carbon flange allows secure mounting of intake tube to our heat shield

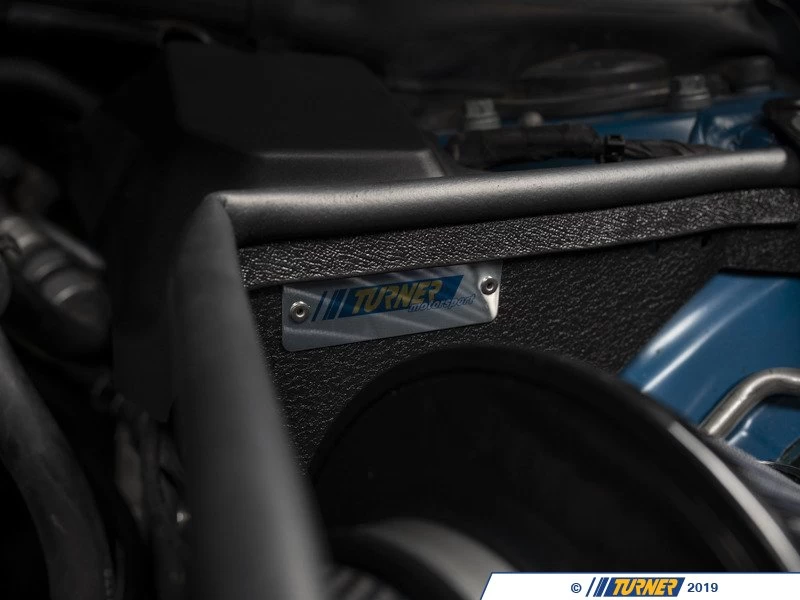

Heat shield:

• One piece design manufactured from 12 gauge 5052 aluminum
• Wrinkle black powder coated
• Supplied gold heat shield tape

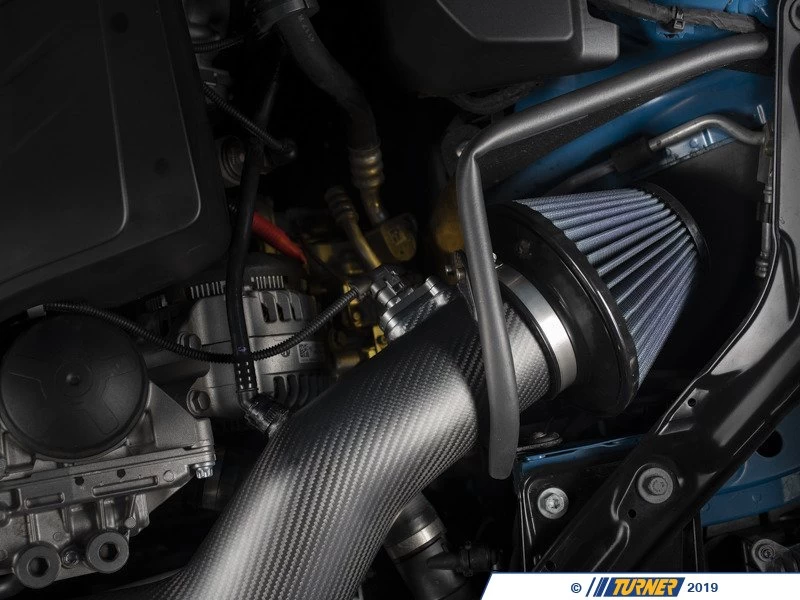

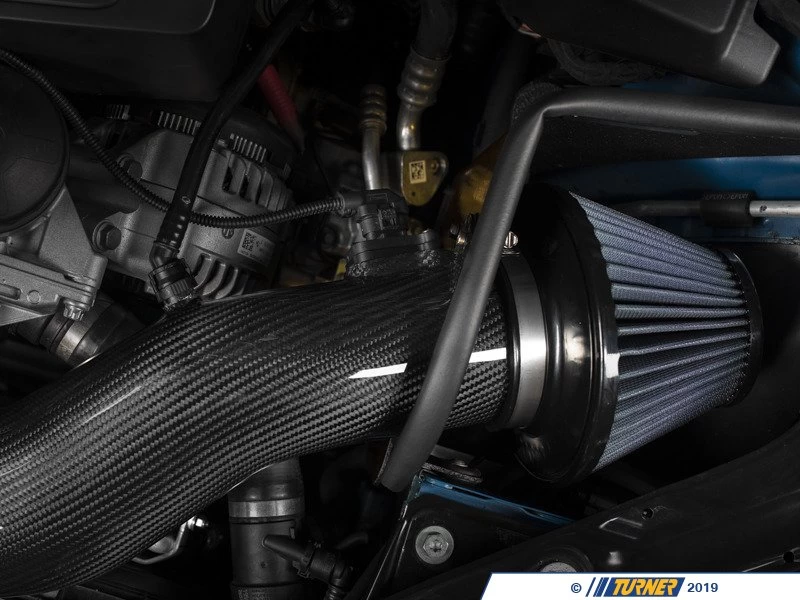

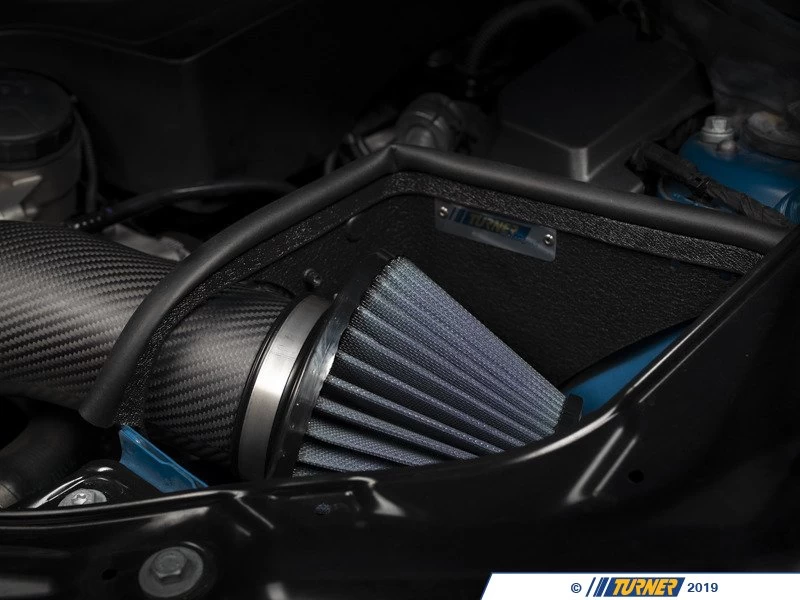

High Flow Air Filter:

• Conical high flow cleanable air filer
• 8 ply oiled cotton gauze
• Bellmouth filter flange inlet reduces turbulence and maximizes flow

Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.
