Wagner Tuning Performance Intercooler Kit – F9X M5 M8 S63 4.4L

Product Details

Included in this kit:

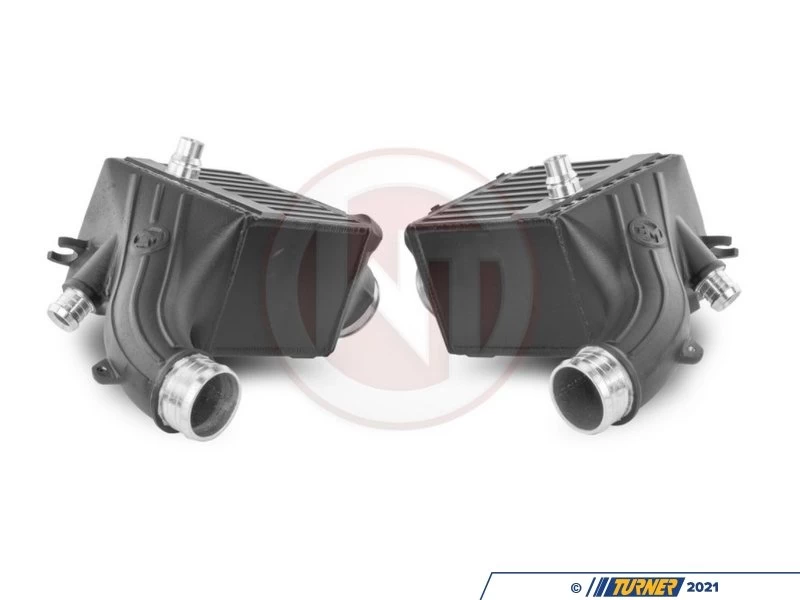

• 2 High-Performance Intercoolers
• 5 Silicone hoses
• Mounting Components

The 4.4 Liter V8 biturbo engine (S63 B44T4) of BMW M-models is equipped with an indirect charge-air cooling circuit. So the cooling of the charged air is realized by a water-cooled intercooler which will be replaced by this WagnerTuning high-performance intercooler.

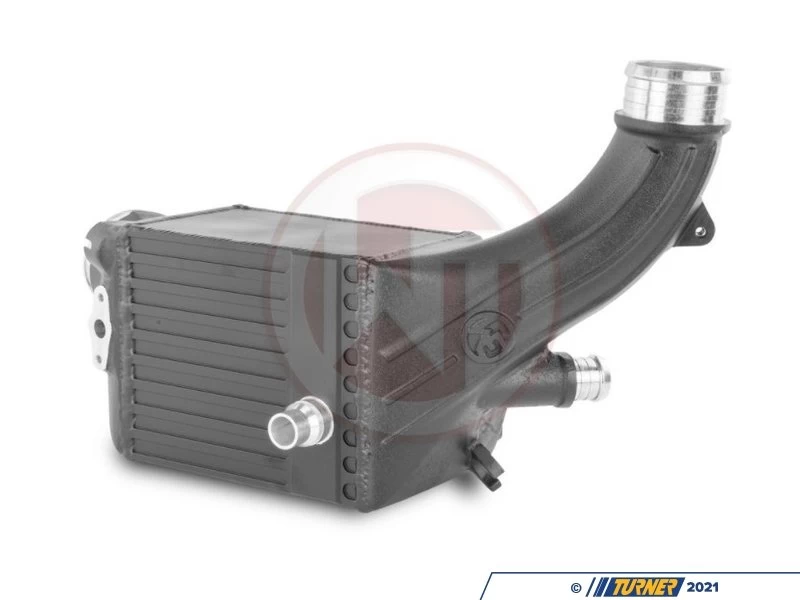

The WAGNERTUNING high-performance intercooler has got a new performance core with the external core dimensions 192 mm x 156 mm x 128 mm / 8,23Inch x 6,89Inch x 4,33Inch. This intercooler core was directly developed for the high requirements of the BMW M5/M8 engine and offers 75 % more external core volume compared to the stock intercooler. The calculated ratio between the inner and outer cooling surface generates a maximum heat transfer and at the same time the best possible internal airflow. The aluminum cast end tanks were designed in CAD and optimized in CFD simulations. The result is an excellent cooling property with minimal backpressure. That`s why this kit is also perfect for racing use. An optimal cooling effect of the charged air with a significant increase in performance!

All WAGNERTUNING radiators are equipped with a heat-conductive anti-corrosion coating to ensure a lasting cooling effect. The plug & play installation of the system is simple and easy to perform (an installation instruction is included as well).

Advantages of this product:

• significantly better cooling performance
• more power and torque for your engine
• mechanical discharge of the turbocharger
• 100% pressure resistance
• 100% Plug and Play
• up to 4 years warranty

Core dimensions OE BMW stock intercooler:
152 mm x 143 mm x 100 mm
Volume: 2,19 Liter

Core dimensions Wagner Tuning intercooler:
192 mm x 156 mm x 128 mm
Volume: 3,83 Liter (+75%)

Fits the following models:

• BMW F90 M5 441KW/600PS (2017+)
• BMW F90 M5 Competition 460KW/625PS (2018+)
• BMW F90 M5 CS 467KW/635PS (2021+)
• BMW F91/92/93 M8 441KW/600PS (2019+)
